ASA VL 160

Vacuum-loading sewage saddle

Vacuum-loading sewage saddle ASA TL, SDR 17

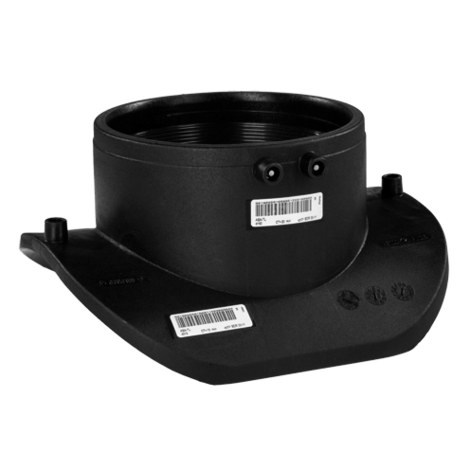

Compact component made from HD-PE with integrated fusion coupler in the outlet (d 160)
For a connection for connecting pipes to existing PE main channel
Safety technology

Note:

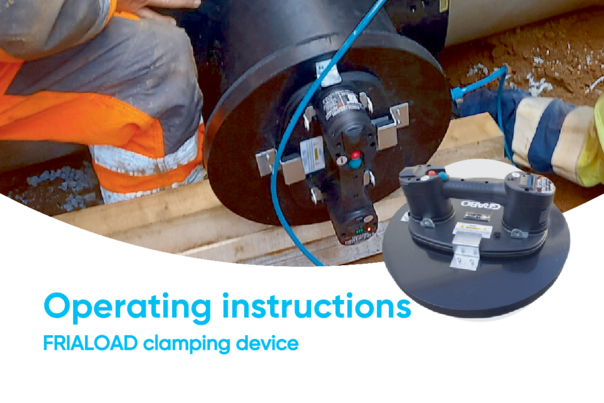

Can only be fused with the clamping system FRIALOAD.

Components: PUMP (Order No. 613810), PLATE (Order No. 617372) and FWAB ASA VL 160/450 (Order No.613846) or FWAB ASA VL 160/710 (Order No. 613816).

For installation on close-fit liners please contact our hotline +49 621 486-2325.

Go back Data sheet

PE 100

Maximum permissible working pressure 2.5 bar

	Reference	DN	d₁	d₂	B1	B2	H1	H2	t	Weight kg	BX	PU
	682618	150	200	160	270	210	163	92	76	0,990	8	64
¹	682613	150	225 250	160	270	230	165	94	76	0,950	8	64
	682614	150	280	160	270	240	143	72	76	0,810	10	80
	682615	150	315	160	270	250	139	68	76	0,990	10	80
	682620	150	355	160	270	255	129	58	76	0,960	10	80
	682621	150	400	160	270	255	123	52	76	0,900	10	80
	682616	150	450	160	270	255	117	46	76	0,890	10	80
	682622	150	500/560/630	160	270	255	117	46	76	0,900	10	80

¹ When using d 250 pipes please contact the hotline +49 621 486-1896.

For installation on close-fit liner, please contact our hotline +49 621/486-1896.

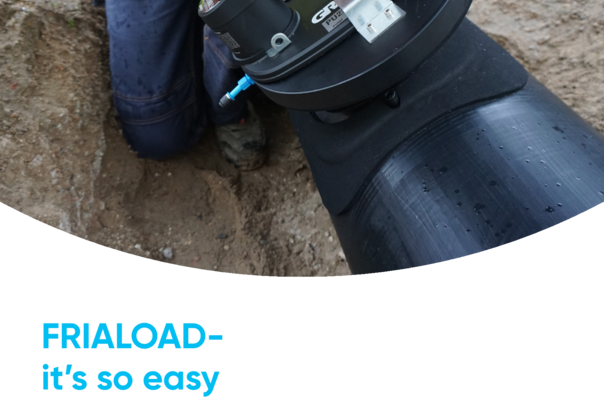

Mounting with clamping device FRIALOAD.

Sewage pipe systems are high-value assets of a value which has to be maintained for a long time. Increasing demands on the public sewage system require materials which meet these criteria. HDPE sewage pipes have been fused for many years with the FRIAFIT HDPE sewage system tightly, frictionlocked and root-proof.

Areas of Application

Domestic connections to HDPE sewers: These have up to now been carried out using spigot fittings which are connected to the pipe system with heating coil couplers. Retrospective connection to domestic pipes is only possible if the sewer pipe system is separated which is time consuming. The FRIAFIT-Sewage Saddle ASA VL 160 allows to establish domestic sewer connections without having to separate the existing pipeline.

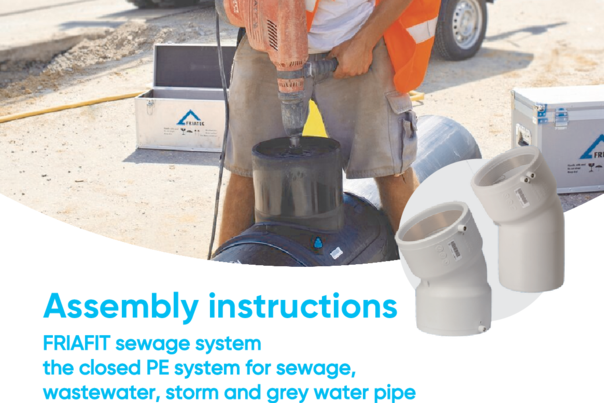

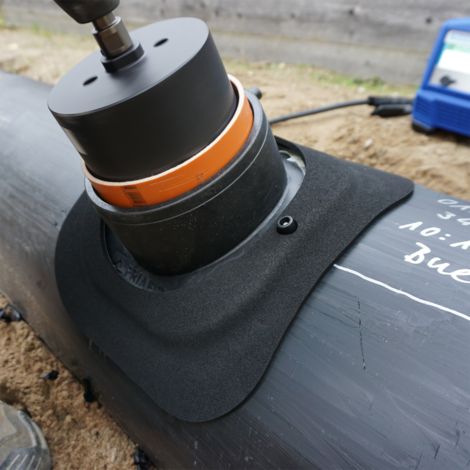

Assembly Instructions with vaccum clamping by clamping device FRIALOAD and tapping unit FWAB ASA d 160

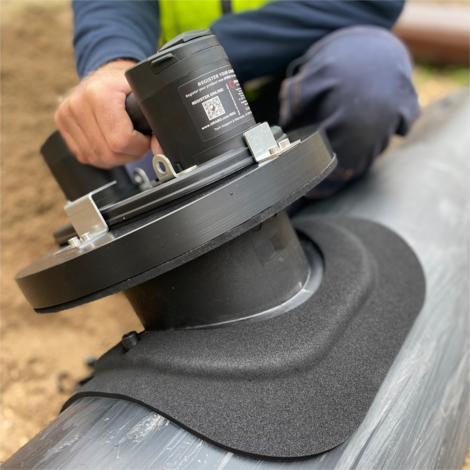

The clamping force of the saddle required for fusion and build-up of the joining pressure is applied by a vacuum. This only requires the clamping device FRIALOAD. Typical out-of-roundnesses and shape deviations of the pipe can be bridged by the clamping method.

Good reasons for using the FRIAFIT-Sewage Saddle ASA VL 160

Economic establishing of domestic connections, particularly in areas with high density of development

Can be used with new installations, restoration and retrospective connections of sewer pipes

Minimal space required due to the compact component design. Pipe connections from HDPE are fused directly into the integrated heating coil coupler of the outlet socket

Direct integration of connecting pipes without misalignment or flow obstructions

No further components required due to integrated heating coil coupler in the outlet

Barcode for fully automatic fusion process with HDPE pipes from SDR 33 to SDR 11 in view of the surrounding temperature (compensation of the temperature)
