FRIALOAD

Clamping System (Vacuum Load)

For the assembly of:

  • FRIALEN spigot saddles SA VL d 400 - d 1200 with outlet d 160 - d 400
  • FRIAFIT sewage saddles ASA VL d 200 - d 630 with outlet d 160 and d 225

Note:

Battery-operated component PUMP generates and regulates vacuum fully automatically for the joining pressure. No additional power source required.

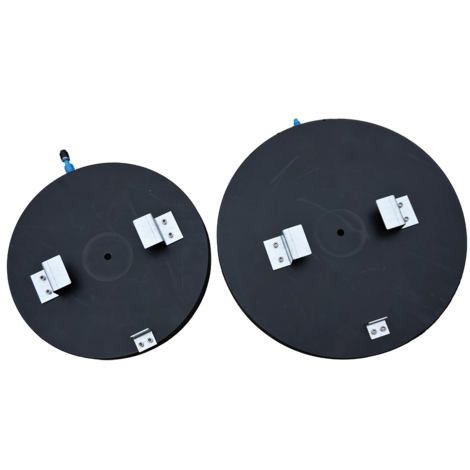

PLATE (d 325 and d 400) allow the processing of all with VL marked saddles. Outlet dimensions from d 160 to d 400.

Go back Data sheet
Reference Article description Weight kg BX PU
613810 PUMP 1,500 1 10
617372 PLATE 6,050 1 -
