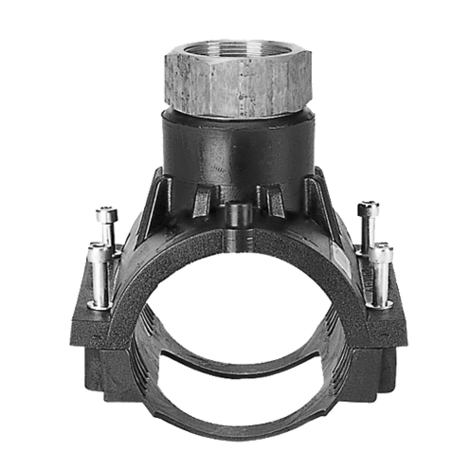

Valve tapping saddle with transition HD-PE/gunmetal
Valve tapping saddle with transition HD-PE/gunmetal VAM RG
- Gas, water
- Maximum pressure: Water 16 bar, Gas 10 bar
- Material: PE 100 and gunmetal (female thread)
- Saddle component with clamp
- Safety technology
- Metals in contact with water according to UBA recommendation
Note:
For accommodating commercially available brass valves.
As a complete solution, we recommend our DAV tapping valve.
PE 100 SDR 11
Maximum permissible working pressure 16 bar (water) / 10 bar (gas)

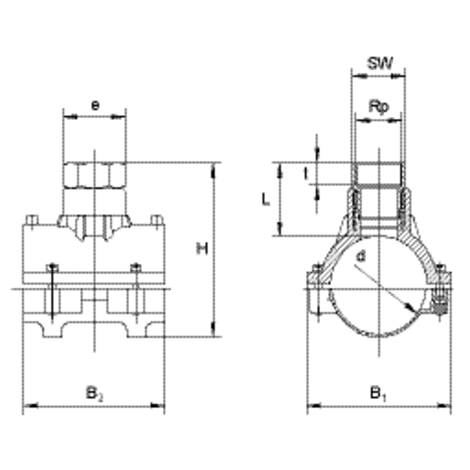

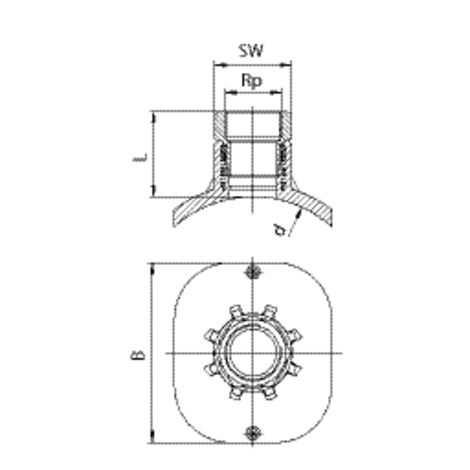

| Reference | d | Rp | B1 | B2 | e | H | L | t | Weight kg | BX | PU |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 612794 | 63 | 1 1/4" | 108 | 118 | 58 | 146 | 75 | 23 | 0,730 | 20 | 360 |
| 612743 | 63 | 1 1/2" | 108 | 118 | 64 | 149 | 78 | 23 | 0,780 | 20 | 360 |
| 615213 | 75 | 1 1/4" | 110 | 125 | 58 | 161 | 76 | 23 | 0,850 | 15 | 270 |
| 612798 | 90 | 1 1/2" | 155 | 150 | 81 | 172 | 68 | 27 | 1,370 | 16 | 128 |
| 612778 | 90 | 2" | 155 | 150 | 81 | 199 | 95 | 27 | 1,560 | 16 | 128 |
| 612732 | 110 | 1 1/2" | 178 | 180 | 81 | 182 | 70 | 27 | 1,488 | 12 | 96 |
| 612733 | 110 | 2" | 178 | 180 | 81 | 205 | 92 | 27 | 1,684 | 12 | 96 |
| 612734 | 125 | 1 1/2" | 190 | 185 | 81 | 207 | 68 | 27 | 1,610 | 12 | 96 |
| 612735 | 125 | 2" | 190 | 185 | 81 | 234 | 95 | 27 | 1,850 | 12 | 96 |
| 612728 | 160 | 1 1/2" | 225 | 195 | 81 | 242 | 68 | 27 | 1,800 | 8 | 64 |
| 612729 | 160 | 2" | 225 | 195 | 81 | 269 | 95 | 27 | 2,040 | 8 | 64 |
| 612827 | 225 | 2" | 255 | 195 | 81 | 322 | 95 | 27 | 1,990 | 5 | 40 |
FRIALEN safety fittings can be fused with pipes with SDR levels 11 to 17.6.
DVGW test marks issued: DV-7501AU2257 and DV-7501AU2258.
1) Saddle mouldings d 63 can only be fused with pipes of the SDR level 11.
*as a complete solution we recommend our DAV pressure drilled valve
Areas of Application
FRIALEN-Valve Tapping Saddles VAM-RG and VAM-RG-TL are used for acceptance of normal commercial brass valves.
Assembly Instructions
VAM-RG
After scraping and cleaning of the pipe which is being fused and cleaning of the internal surface of the FRIALEN-Valve Tapping Saddle the Valve Tapping Saddle is screwed with the bottom section tightly to the HDPE pipe (see Assembly Instructions for “FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”).
VAM-RG-TL
The preparation of the surfaces to be fused is the same as for VAM-RG. The saddle is clamped onto the pipe with the FRIATOP clamping device (see pricelist “Technical Equipment”). Please read the “Assembly and Operating Instructions for FRIATOP clamping unit (Top-Loading)”. Fusion takes place by FRIAMAT-fusing.
Eight good reasons for using the FRIALEN-Valve Tapping Saddles:
- Compact construction
- HDPE saddle with exposed heating element for optimal heat transfer
- Gunmetal adapter permanently anchored in the HDPE
- To accept normal commercial brass valves
- Tapping area free of heating wires
- Thread to DIN EN 10226-1, ISO 7-1
- Type VAM-RG-TL can be applied universally to large HDPE pipe diameters d 250-315 (560). This means additional economy due to less material needed and less stock both with suppliers and trade
- Additional barcode for tracing back the underground fitting (Traceability-Coding)
