Tapping tee, SDR 11

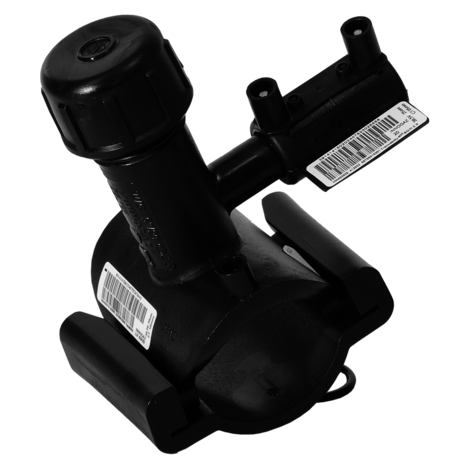

Tapping tee LVTT SDR 11

  • Gas and water
  • Working pressure: MOP (gas) 10 bar, PFA (water) 16 bar
  • Material: PE 100
  • Integrated drill with upper and lower inner stop
  • Sealing plug with internal sealing O-ring
  • PE undersaddle ≤ d 63
  • Strap undersaddle > d 63

Go back Data sheet
Tapping tee, SDR 11
Tapping tee, SDR 11
Tapping tee, SDR 11
Tapping tee, SDR 11

PE 100 SDR 11

Maximum permissible working pressure 16 bar (water) / 10 bar (gas)

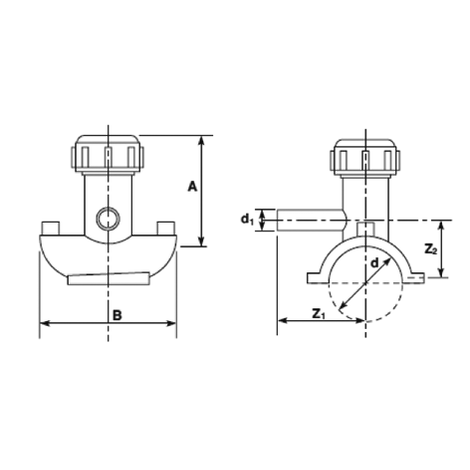

Reference d d1 MOP gas PFA/PN water A B z1 z2 WS Drilling
Ø da		 Weight [kg] BX
1 2071412 32 20 10 bar 16 bar 85 88 92 29 10 14 0,220 50
1 2071415 40 20 10 bar 16 bar 105 108 72 45 10 18,5 0,360 480
1 2071417 40 32 10 bar 16 bar 105 108 77 45 10 18,5 0,150 480
1 2071424 63 20 10 bar 16 bar 105 108 72 57 10 20 0,400 480
1 2071425 63 25 10 bar 16 bar 105 108 75 57 10 20 0,410 480
1 2071426 63 32 10 bar 16 bar 105 108 77 57 10 20 0,170 480
2 2071437 90 20 10 bar 16 bar 105 108 72 70 10 20 0,410 480
2 2071439 90 32 10 bar 16 bar 105 108 77 70 10 20 0,430 480
2 2071445 110 20 10 bar 16 bar 105 108 72 80 10 20 0,430 480
2 2071446 110 25 10 bar 16 bar 105 108 75 80 10 20 0,430 480
2 2071448 110 32 10 bar 16 bar 105 108 77 80 10 20 0,430 480
2 2071454 125 20 10 bar 16 bar 105 108 72 88 10 20 0,430 480
2 2071455 125 25 10 bar 16 bar 105 108 75 88 10 20 0,430 480
2 2071456 125 32 10 bar 16 bar 105 108 77 88 10 20 0,430 480
2 2071475 160 20 10 bar 16 bar 105 108 72 105 10 20 0,430 480
2 2071477 160 32 10 bar 16 bar 105 108 77 105 10 20 0,430 480
1 Permanent PE undersaddle
2 4-10 times re-usable strap undersaddle
