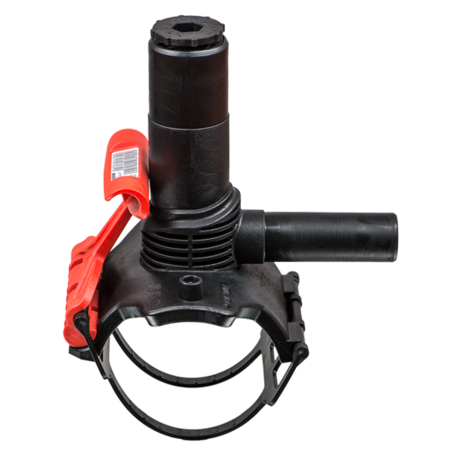

Tapping tee RED SNAP, SDR 11

Tapping tee DAA SDR 11

Gas, water and H2
Working pressure: MOP (gas) 10 bar, PFA (water) 16 bar
Material: PE 100
Quick release mechanism (RED SNAP):
- Simple and error-free assembly
- Increased quality and safety
- Save 50% of installation time
Integrated drill with upper and lower inner stop
Sealing plug with internal sealing O-ring
Safety technology
DVGW test mark: DV-6611CS0007

Note:

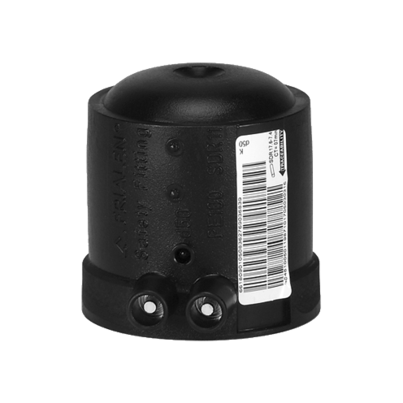

When using 100 % hydrogen (H2), the tapping tees DAA must be fitted with a cap DK (Order No. 612310).

As a precautionary measure, we recommend additionally using a DK cap for all new DAA installations.

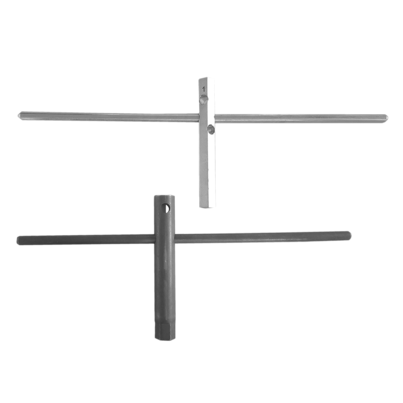

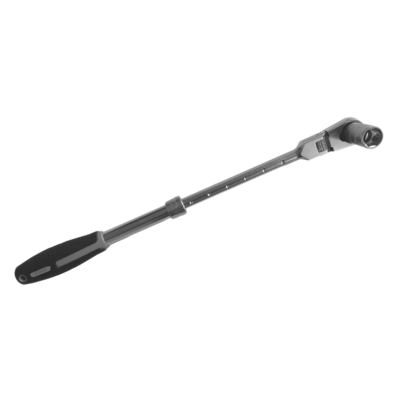

The actuating key FWSS SW 17 (Order no. 613246) must be used for all dimensions.

All outlets (d2) with nominal widths 40 and 50 are always solutions with a reducing sleeve MR.

Special application pressure test:

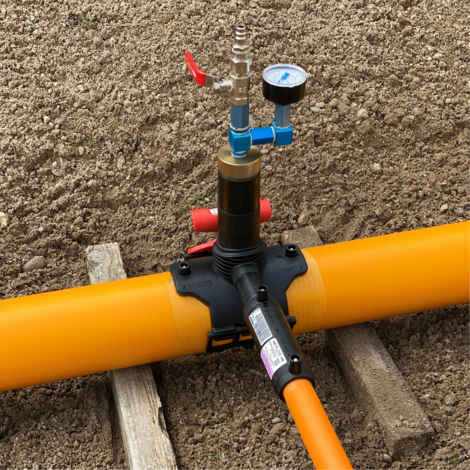

A pressure test adapter (order no. 613597) is available for the pressure tapping tee.

Go back Data sheet

PE 100 SDR 11

Maximum permissible working pressure 16 bar (water) / 10 bar (gas)

Reference	d₁	d₂	d₃	B1	B2	L	t₁	t₂	z₁	z₂	z₃	SW	Drilling Ø d_a	Weight kg	BX	PU
612630	40	20	50	85	136	120	50	66	32	105	8	17	25	0,380	30	240
616473	40	25	50	85	136	120	50	83	32	122	8	17	25	0,380	30	240
616474	40	32	50	85	136	120	50	86	32	125	8	17	25	0,390	30	240
616475	50	20	50	95	136	120	50	66	37	108	8	17	25	0,380	28	224
612702	50	25	50	95	136	120	50	83	37	125	8	17	25	0,390	28	224
615080	50	32	50	95	136	120	50	86	37	128	8	17	25	0,400	28	224
612631	63	20	50	108	146	130	50	66	51	100	10	17	25	0,440	20	160
612633	63	25	50	108	146	130	50	83	51	118	10	17	25	0,450	20	160
612632	63	32	50	108	146	130	50	86	51	123	10	17	25	0,460	20	160
616472	63	40	50	108	146	160	50	115	51	165	10	17	30	0,860	16	128
616334	63	63	50	108	146	160	50	115	51	165	10	17	30	0,640	16	128
616482	75	32	50	120	146	130	50	86	57	126	10	17	25	0,480	24	192
616483	90	20	50	137	170	160	50	66	66	106	10	17	30	0,610	14	112
616484	90	25	50	137	170	160	50	83	66	123	10	17	30	0,620	14	112
612634	90	32	50	137	170	160	50	86	66	126	10	17	30	0,630	14	112
615656	90	40	50	137	170	160	50	115	66	168	10	17	30	0,970	14	112
616476	90	50	50	137	170	160	50	115	66	168	10	17	30	0,990	14	112
612701	90	63	50	137	170	160	50	115	66	168	10	17	30	0,750	14	112
616487	110	20	50	152	170	160	50	66	76	111	10	17	30	0,620	14	112
616488	110	25	50	152	170	160	50	83	76	128	10	17	30	0,630	14	112
612637	110	32	50	152	170	160	50	86	76	134	10	17	30	0,650	14	112
615662	110	40	50	152	170	160	50	115	76	175	10	17	30	0,980	14	112
616477	110	50	50	152	170	160	50	115	76	175	10	17	30	0,990	14	112
612624	110	63	50	152	170	160	50	115	76	175	10	17	30	0,770	14	112
616491	125	20	50	167	170	160	50	66	83	111	10	17	30	0,650	12	96
616492	125	25	50	167	170	160	50	83	83	131	10	17	30	0,670	12	96
612649	125	32	50	167	170	160	50	86	83	138	10	17	30	0,670	12	96
615668	125	40	50	167	170	160	50	115	83	180	10	17	30	1,030	12	96
616478	125	50	50	167	170	160	50	115	83	180	10	17	30	1,120	12	96
612309	125	63	50	167	170	160	50	115	83	180	10	17	30	0,820	12	96
616495	140	32	50	170	170	160	50	86	91	141	10	17	30	0,710	12	96
616496	140	63	50	170	170	160	50	115	91	185	10	17	30	0,830	12	96
616497	160	20	50	195	186	160	50	66	106	108	10	17	30	0,750	10	80
616498	160	25	50	195	186	160	50	83	106	128	10	17	30	0,750	10	80
612641	160	32	50	195	186	160	50	86	106	137	10	17	30	0,760	10	80
615675	160	40	50	195	186	160	50	115	106	185	10	17	30	1,130	10	80
616480	160	50	50	195	186	160	50	115	106	185	10	17	30	1,130	10	80
612650	160	63	50	195	186	160	50	115	106	185	10	17	30	0,910	10	80
616501	180	20	50	203	186	190	50	66	116	110	10	17	30	0,790	10	80
616502	180	25	50	203	186	190	50	83	116	132	10	17	30	0,800	10	80
612651	180	32	50	203	186	190	50	86	116	141	10	17	30	0,820	10	80
616481	180	50	50	203	186	190	50	115	116	188	10	17	30	1,180	10	80
612652	180	63	50	203	186	190	50	115	116	188	10	17	30	0,950	10	80
612654	200	32	50	205	186	190	50	86	126	144	10	17	30	0,820	8	64
612659	200	63	50	205	186	190	50	115	126	190	10	17	30	0,950	8	64
612657	225	32	50	214	186	190	50	86	138	146	10	17	30	0,830	8	64
616486	225	50	50	214	186	190	50	115	138	197	10	17	30	1,210	8	64
612655	225	63	50	214	186	190	50	115	138	197	10	17	30	0,990	8	64

FRIALEN pressure tapping tees d 40 can be utilised for pipes of the SDR level 11 and ≧d 50 for pipes of the SDR levels 11 to 17.6. Other levels of SDR can be processed on request. Please note the mandatory labels directly on the product.

DVGW test mark issued: DV-6611CS0007

Areas of Application

The FRIALEN Pressure Tapping Tees DAA are used as branch fittings and can be fused to mains that are unpressurised or under operating pressure.

Assembly Instructions

The fusion of FRIALEN Pressure Tapping Tee DAA to the PE-HD main and the service pipe takes place by FRIALEN fusing - leakproof and longitudinally strong.

The pipe, saddle and the outlet spigot are prepared (oxide layer removed/cleaned) in accordance with the general installation instructions (see “Assembly instructions” for FRIALEN Safety Fittings for house connections and distribution pipes up to d 225).

Thanks to its innovative and patented clamping mechanism, the FRIALEN Pressure Tapping Tee DAA can also be installed without any tool quickly and reliably on the HD-PE main when it exhibits ovality or has expanded under operating pressure.

Good reasons for using the FRIALEN Pressure Tapping Tees DAA:

Compact design

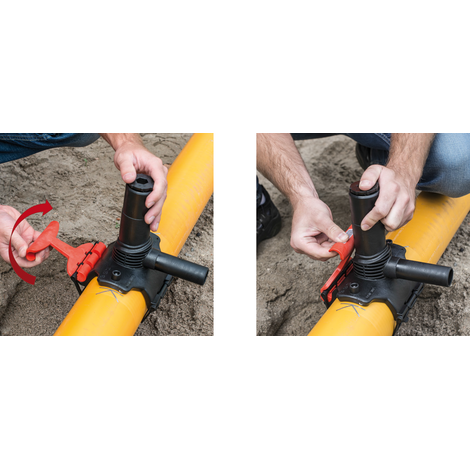

Simple and reliable assembly without any tool thanks to the patented fast clamping lever
The flexible saddle compensates pipe tolerances and always provides optimal, uniform buildup of melt pressure during fusion
Assembly without special tools
The Pressure Tapping Tee is one unit with captive parts
Only one 17 mm wrench size for tapping and installing the plug
Chipless tapping
Leak-free tapping under operating pressure
Low torque needed for tapping
Punched-out pipe piece fits securely in the drill
Stable thread as guidance for the driller during tapping process even at large pipe wall thicknesses and low temperatures
Solid upper and lower stop of driller, with integrated torque limiter
Extra wide fusion zone
After tapping, stack can be fused non-accessible with FRIALEN cap K
Outlet spigot length measured for two fusion operations
Additional barcode for traceability (traceability coding)
Both barcodes exposed on fast clamping lever for easy scanning with readerwand or barcode scanner
