Schrauben verzinkt und sheraplexbeschichtet Dichtung EPDM, DIN-EN 681-1 / KTW / UBA / DVGW-W270 PFA/PN Wasser = 16 bar

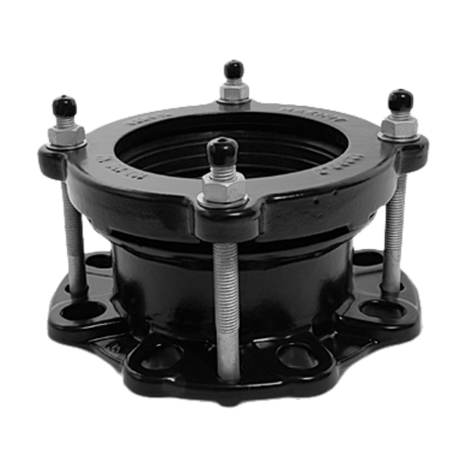

Flanschadapter zur Anbindung von Rohren unterschiedlicher Materialien (Stahl, Guss, Duktil-Guss, Asbestzement, PVC, PE-HD/PEX).
- Gehäuse und Folgering aus Stahl
- Korrosionsschutz Rilsan (min. 250 µm gem. GSK)
- Schrauben und Muttern verzinkt/sheraplexbeschichtet bzw. aus Edelstahl
- Dichtungswerkstoff EPDM
- Durchmessertoleranz max. 17 mm
- Abwinklung der Rohre von max. 3 Grad möglich
- Flanschanschlussmaße nach DIN EN1092, PN 10 und PN 16
Hinweis:
Bei der Anwendung auf PE-HD/PEX-Rohren ist unsere Innenstützhülse SHVA erforderlich. Alternativ empfehlen wir das längskraftschlüssige Produkt FRIAGRIP.
Schrauben verzinkt und sheraplexbeschichtet
Dichtung EPDM, DIN-EN 681-1 / KTW / UBA / DVGW-W270
PFA/PN Wasser = 16 bar
| Artikel | d | DN | Flansch DN | Flansch PN | L | Gewicht [kg] | VE | PE |
|---|---|---|---|---|---|---|---|---|
| GB-14R9-351-30 | 351,0-368,0 | 300 | 300 | 10 | 345 | 57,000 | 1 | 4 |
| GB-16R9-351-30 | 351,0-368,0 | 300 | 300 | 16 | 345 | 57,000 | 1 | 4 |
| GB-14R9-374-35 | 374,5-391,5 | 350 | 350 | 10 | 180 | 38,100 | 1 | 2 |
| GB-16R9-374-35 | 374,5-391,5 | 350 | 350 | 16 | 180 | 38,100 | 1 | 2 |
| GB-14R9-394-35 | 394,3-411,3 | 350 | 350 | 10 | 280 | 45,300 | 1 | 1 |
| GB-16R9-394-35 | 394,3-411,3 | 350 | 350 | 16 | 280 | 39,800 | 1 | 1 |
| GB-14R9-404-40 | 404,8-421,8 | 400 | 400 | 10 | 180 | 37,900 | 1 | 1 |
| GB-16R9-404-40 | 404,8-421,8 | 400 | 400 | 16 | 180 | 39,600 | 1 | 1 |
| GB-14R9-425-40 | 425,0-442,0 | 400 | 400 | 10 | 180 | 35,500 | 1 | 1 |
| GB-16R9-425-40 | 425,0-442,0 | 400 | 400 | 16 | 180 | 35,500 | 1 | 1 |
| GB-14R9-447-40 | 447,2-464,2 | 400 | 400 | 10 | 280 | 45,900 | 1 | 1 |
| GB-16R9-447-40 | 447,2-464,2 | 400 | 400 | 16 | 280 | 45,900 | 1 | 1 |
| GB-14R9-455-40 | 455,0-472,0 | 400 | 400 | 10 | 280 | 50,000 | 1 | 1 |
| GB-16R9-455-40 | 455,0-472,0 | 400 | 400 | 16 | 280 | 45,600 | 1 | 1 |
| GB-14R9-501-45 | 501,9-518,9 | 450 | 450 | 10 | 280 | 53,700 | 1 | 1 |
| GB-16R9-501-45 | 501,9-518,9 | 450 | 450 | 16 | 280 | 53,700 | 1 | 1 |
| GB-14R9-501-50 | 501,9-518,9 | 500 | 500 | 10 | 180 | 53,700 | 1 | 1 |
| GB-16R9-501-50 | 501,9-518,9 | 500 | 500 | 16 | 180 | 53,700 | 1 | 1 |
| GB-14R9-510-50 | 510,0-527,0 | 500 | 500 | 10 | 180 | 48,000 | 1 | 1 |
| GB-16R9-510-50 | 510,0-527,0 | 500 | 500 | 16 | 180 | 53,000 | 1 | 1 |
| GB-14R9-527-50 | 527,0-544,0 | 500 | 500 | 10 | 180 | 42,900 | 1 | 1 |
| GB-16R9-527-50 | 527,0-544,0 | 500 | 500 | 16 | 180 | 50,500 | 1 | 1 |
| GB-14R9-540-50 | 540,1-557,1 | 500 | 500 | 10 | 280 | 50,500 | 1 | 1 |
| GB-16R9-540-50 | 540,1-557,1 | 500 | 500 | 16 | 280 | 50,500 | 1 | 1 |
| GB-14R9-555-50 | 555,3-572,3 | 500 | 500 | 10 | 280 | 62,000 | 1 | 1 |
| GB-16R9-555-50 | 555,3-572,3 | 500 | 500 | 16 | 280 | 64,000 | 1 | 1 |
| GB-14R9-566-50 | 566,5-583,5 | 500 | 500 | 10 | 345 | 62,200 | 1 | 1 |
| GB-16R9-566-50 | 566,5-583,5 | 500 | 500 | 16 | 345 | 62,200 | 1 | 1 |
| GB-14R9-582-50 | 582,2-599,2 | 500 | 500 | 10 | 345 | 54,200 | 1 | 1 |
| GB-16R9-582-50 | 582,2-599,2 | 500 | 500 | 16 | 345 | 62,500 | 1 | 1 |
| GB-14R9-601-60 | 601,0-618,0 | 600 | 600 | 10 | 180 | 63,000 | 1 | 1 |
| GB-16R9-601-60 | 601,0-618,0 | 600 | 600 | 16 | 180 | 65,500 | 1 | 1 |
| GB-14R9-630-60 | 630,5-647,5 | 600 | 600 | 10 | 180 | 63,400 | 1 | 1 |
| GB-16R9-630-60 | 630,5-647,5 | 600 | 600 | 16 | 180 | 66,100 | 1 | 1 |
| GB-14R9-645-60 | 645,2-662,2 | 600 | 600 | 10 | 280 | 63,100 | 1 | 1 |
| GB-16R9-645-60 | 645,2-662,2 | 600 | 600 | 16 | 280 | 63,700 | 1 | 1 |
| GB-14R9-675-60 | 675,0-692,0 | 600 | 600 | 10 | 280 | 64,400 | 1 | 1 |
| GB-16R9-675-60 | 675,0-692,0 | 600 | 600 | 16 | 280 | 78,000 | 1 | 1 |
