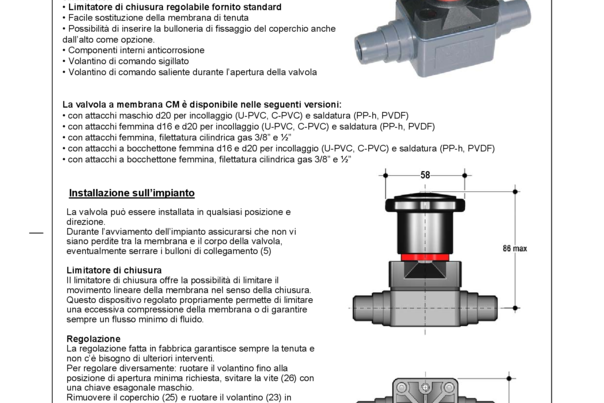

Membranventil, PVDF, Schweißmuffe
- Anschluss: Schweißmuffe
- Membrane: EPDM oder FKM oder PTFE
- mit einstellbarer Schließbegrenzung
Hinweis:
Mit Dichtung EPDM oder PTFE auf Anfrage.
Weitere Anschlussarten: Schweißstutzen (CMDF), Gewindemuffe (CMFF).
Membrane: EPDM

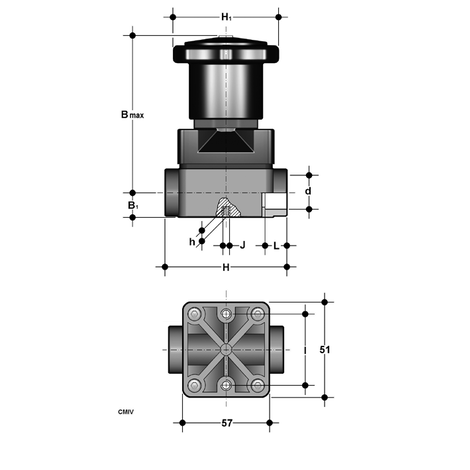

Artikel | d | DN | PN | B1 | B max | H | H1 | h | I | J | L | Gewicht kg |
VE |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
135286020016 | 16 | 12 | 6 | 15 | 86 | 75 | 58,5 | 8 | 35 | M5 | 14 | 0,290 | 8 |
135286020020 | 20 | 15 | 6 | 15 | 86 | 75 | 58,5 | 8 | 35 | M5 | 16 | 0,290 | 8 |
Membrane: FKM
Artikel | d | DN | PN | B1 | B max | H | H1 | h | I | J | L | Gewicht kg |
VE |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
135286021016 | 16 | 12 | 6 | 15 | 86 | 75 | 58,5 | 8 | 35 | M5 | 14 | 0,290 | 8 |
135286021020 | 20 | 15 | 6 | 15 | 86 | 75 | 58,5 | 8 | 35 | M5 | 16 | 0,290 | 8 |
Membrane: PTFE
Artikel | d | DN | PN | B1 | B max | H | H1 | h | I | J | L | Gewicht kg |
VE |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
135286022016 | 16 | 12 | 6 | 15 | 86 | 75 | 58,5 | 8 | 35 | M5 | 14 | 0,290 | 8 |
135286022020 | 20 | 15 | 6 | 15 | 86 | 75 | 58,5 | 8 | 35 | M5 | 16 | 0,290 | 8 |
