221.186.41X | CMFV/CP-NC

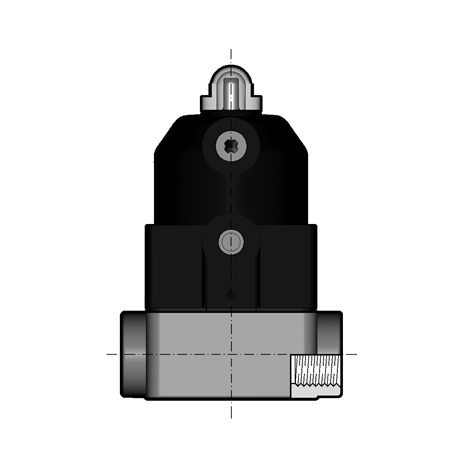

2/2-Wege-Membranventil CM/CP, PVC-U, Typ 186, R3/8" und R1/2", Gewindemuffe, NC
2/2-Wege-Membranventil mit pneumatischem Stellantrieb und optischer Stellungsanzeige
- Gehäusewerkstoff: PVC-U
- Funktion: normal geschlossen (NC)
- Membranwerkstoff: EPDM, auf Anfrage FKM oder PTFE/EPDM
- Steuerdruck: max. 7 bar
- Steueranschluss: R 1/4''
- Antriebsfarbe: schwarz
- Betriebsdruck: einseitig anstehend
- Anschluss: Gewindemuffe
![2/2-Wege-Membranventil CM/CP, PVC-U, Typ 186, R3/8" und R1/2", Gewindemuffe, NC 2/2-Wege-Membranventil CM/CP, PVC-U, Typ 186, R3/8" und R1/2", Gewindemuffe, NC](/pim/fip-de/images/image-thumb__40242__product-detail/cmfv_21-186-41x_sw_b.png)
Artikel | DN | R | PN | Antrieb | Membranwerkstoff | VE |
---|---|---|---|---|---|---|
221186410100016 | 12 | 3/8'' | 6 | NC | EPDM | 8 |
221186410100020 | 15 | 1/2'' | 6 | NC | EPDM | 8 |
221186411100016 | 12 | 3/8'' | 6 | NC | FKM | 1 |
221186411100020 | 15 | 1/2'' | 6 | NC | FKM | 1 |
221186412100016 | 12 | 3/8'' | 6 | NC | PTFE/EPDM | 1 |
221186412100020 | 15 | 1/2'' | 6 | NC | PTFE/EPDM | 1 |
